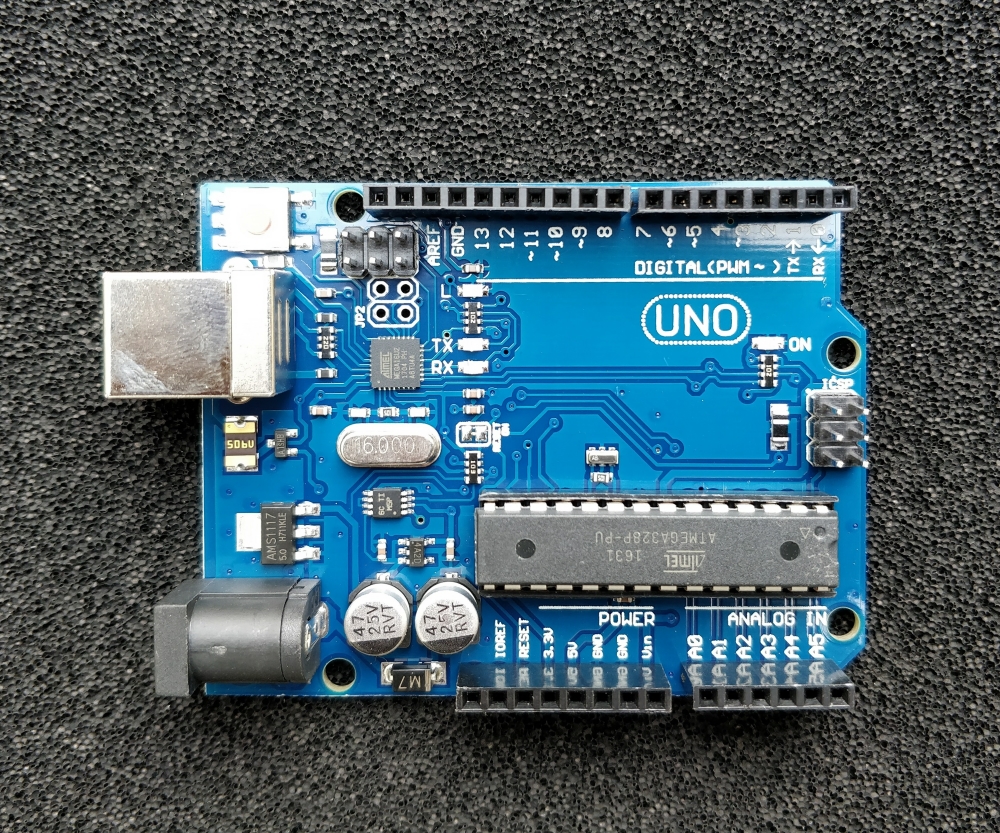

Available in our store the UNO board with ATmega328P and ATmega16U2.

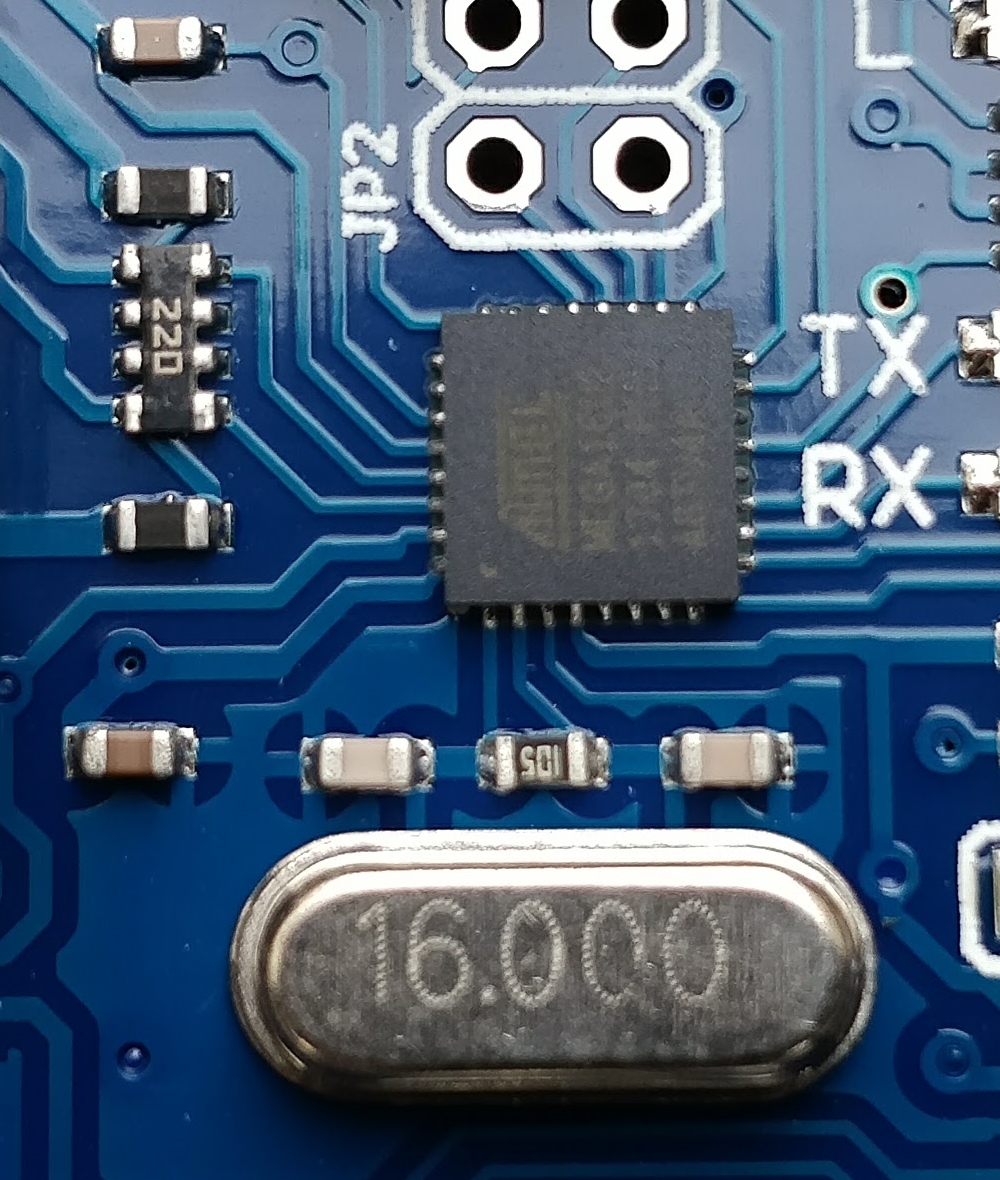

It features the ATmega16U2 programmed as a USB-to-serial converter to communicate with the IDE. This allows for faster transfer rates and more memory.
This board is fully compatible with the Arduino Uno board but with a cheaper price.
The ATmega328 is programmed with the bootloader and can be used with all our shield.
|
| Technical features |
|
- Microcontroller ATmega328P
- Operating Voltage 5V
- Input Voltage (recommended) 7-12V
- Input Voltage (limit) 6-20V
- Digital I/O Pins 14 (of which 6 provide PWM output)
- PWM Digital I/O Pins 6
- Analog Input Pins 6
- DC Current per I/O Pin 20 mA
- DC Current for 3.3V Pin 50 mA
- Flash Memory 32 KB (ATmega328P) of which 0.5 KB used by bootloader
- SRAM 2 KB (ATmega328P)
- EEPROM 1 KB (ATmega328P)
- Clock Speed 16 MHz
- LED_BUILTIN 13
- Length 68.6 mm
- Width 53.4 mm
- Weight 25 g
|
